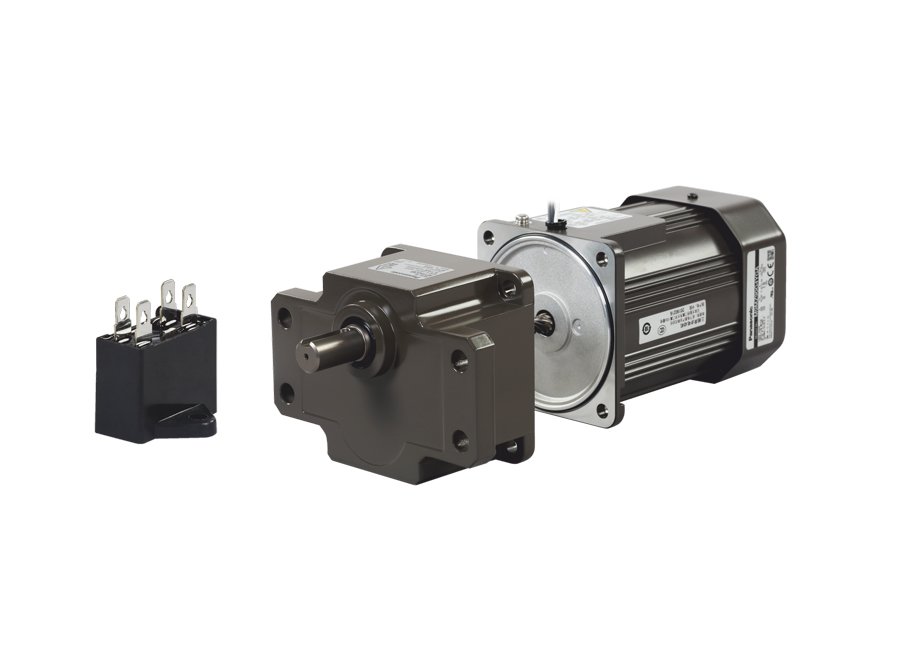

AC Gear Motor

Features :

• Compact, silent and reliable AC geared motors from 6 Watts to 90 Watts.150 Watts with straight shaft also available
• Low noise – achieved through accurately machined helical gears immersed in a grease bath
• Compact square frame sizes from 60mm to 90mm
• Available as single phase & three phase induction motors, single phase reversible motors, motors with terminal boxes
• UL rated motors, electromagnetic brake motors and variable speed motors
• Motors are 2 pole or 4 pole
• Variable speed motors are fitted with a built-in tacho generator to enable speed control
• Can be fitted with gear heads of ratio from 3:1 to 2000:1
• Ball bearing gear heads have a life of 5000 hours while metal bearing gear heads have a life of 2000 hours at rated load @ 8 hours per day
• Maximum permissible output torque is 300kg-cm

Application :
Textile, Printing & Packaging machinery; Conveyor lines, Currency counting machines, Vending machines and other automation equipment.
